DAA FLEX Holster
A103676 |
DAA FLEX Holster, no insert |
$320 |

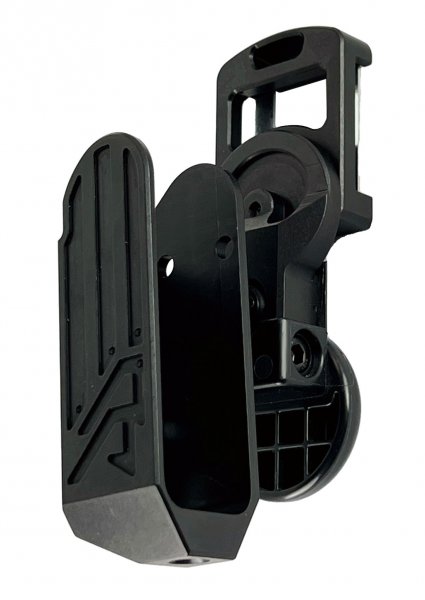

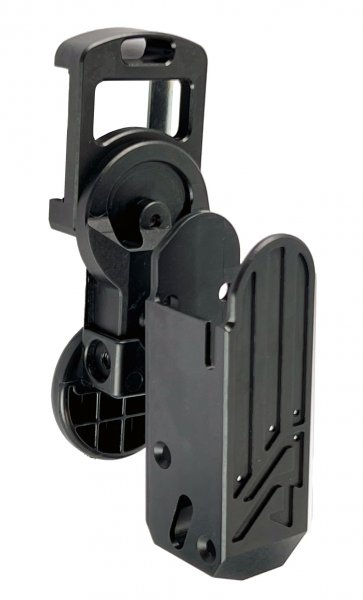

Flex Right-Hand Aluminum Assembly only!
The Flex holster is made from fully CNC machined aluminum for rigidity and durability. It’s designed to be used on 1.5” wide competition belts, and is a perfect fit on the DAA LYNX of Premium belts.
The new hanger design includes a detachable belt hanger which enables the user to detach the lower part of the holster from the belt, while retaining all positional settings – by removing just a single screw. This is extremely useful when traveling.
A new upgrade feature, unique to the Flex holster, is the tilt options incorporated in the hanger assembly. This additional adjustment axis, allows you to position the lower half of the hanger either vertically (as in the Alpha-X) or tilted forward or backwards in incremental steps. This enables the user to adjust the contact point that the thigh pad (which is included as standard in the Flex holster) makes with the body. Adjusting for maximum comfort, depending on your body type and where you mount your holster on the belt.
Ball Joint adjustability and Rail height adjustment
The Flex's ball joint and rail height adjustment are taken directly from the Alpha-X holster’s proven and tested design. The large 18mm ball joint with M6 clamping screw enable a full range of tilt and cant adjustability and a rock solid lockup. The easy access from the front makes it possible to setup and adjust the holster while on the body.
The dove-tail rail machined into the side of the holster body, offers a large range of height adjustment with a single screw lock/release.
The Right hand Flex holster is available in a choice for 4 aluminum anodize colors, including Black, Blue, Red, and Titanium Grey. LH holsters are offering in Black only
A choice of 8 color inlays provides additional personalization.
A Flex holster blank (without the insert block) includes the following:
- A fully assembled Flex Aluminum Holster – including polymer Thigh Pad.
- An EVA case, ideal for later use as a utility/cleaning kit box
- A full set of tools including: A large T-handle 5mm Allen, Long Allen keys: 2.5/3/4mm, short screw-driver with double-end bit of T20 Torx and Allen 2mm
- A user instruction card
A103681 |
Flex holster, insert A |
$75 |
A103682 |
Flex holster, insert B |
$75 |

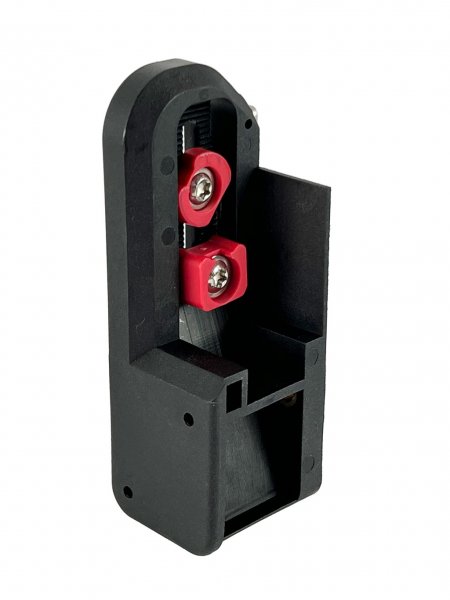

At the heart of the DAA Flex holster is the new, innovative, Pat Pending Flex insert block.
This insert design allows each user to adjust and fine-tune his insert block to perfectly fit his particular pistol. Not only does this allow us to support almost all gun types with just two models of inserts (Type-A and Type-B), but it enable users to adjust for the small variances that are often introduced by the gun manufacturers, who don’t consider the external dimensions of the trigger guard to be critical. This has always been an issue for the Alpha-X inserts, and this problem is now solved with the new Flex insert design.
Now, using the adjustable slide-lock teeth, the selection of side spacers and Shims, and possibly the front spacer, each shooter can achieve a perfect fit to his or her pistol.
The Flex Insert Block Assembly features an aluminum slide-lock mounted with user adjustable slide-lock teeth. Magnetic engagement, as in the latest generation of Alpha-X inserts. The new stainless-steel safety lever is wider and flatter than that found in the Alpha-X blocks, and is mounted on the right side of the block, the outside of the holster for all RH shooters. This makes it more accessible and easier to activate.
The new injection molding production process, and rail mounted magnetic support wedge, ensure the slide lock is more stable and moves more consistently than ever.
Do I need the A-type or B-type insert block assembly?
To determine which insert to order, first consult our list to see if your gun model is shown.
Download the list of pistol/insert type match here.
The beauty of the Flex insert is that even if we never tried your pistol model, and it’s not on our list – more than likely it can be used with either the A or the B-type block! In order to determine which one you need for an unlisted gun model, download and print the gun fit sketch, and follow the instruction in the setup video on how to use it to determine which Insert Block can be used with YOUR pistol.
Download the printable Gun fitment sketch here.
Please note:
- Pistols which have a trigger guard that widens gradually from front to back (towards the grip) cannot be used in the Flex holster! Such guns include the HK USP and VP9, the CZ P10, the Arsenal Stryke A/B and some others. More on this in the setup video. These guns require a shaped/contoured cutout which cannot be formed using the parallel spacers of the Flex insert. For these guns – we continue to offer Alpha-X insert blocks.
- The Flex insert are not compatible with the Alpha-X holsters. Nor can the Alpha-X inserts be used in the Flex holster body.

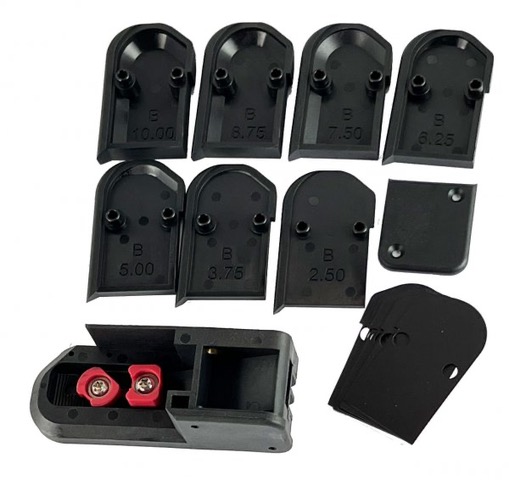

A Flex Insert Block Assembly includes:
- A fully assembled insert block, including an aluminum slide lock with adjustable retention teeth and stainless safety lever
- 7 side spacers in increments of 1.25mm
- A pack of 12 side-Shims, of approx. 0.12mm thickness
- A 2mm front spacer (used only for some gun types)
- Two M4x8 screws for securing the insert assembly to the holster body
- Two 2mmx6 self-tapping screws for mounting the front spacer
- Two 4mmx5 self-tapping screws for mounting the THIN side spacer (use these short screws only for the thinnest 2.5mm side spacer)
- Two 4mmx8 self-tapping screws for mounting the side spacers (use for all side spacers other than the thinnest 2.5mm one)
SAFETY FIRST!
WATCH THE VIDEO TUTORIAL FIRST!
ALWAYS FULLY TEST THE FUNCTION OF YOUR HOLSTER WITH AN UNLOADED GUN, BEFORE ATTEMPING TO USE IT WITH A LOADED FIREARM!
BE SURE YOU ARE FULLY FAMILIAR WITH THE FUNCTION OF THE HOLSTER AND INSERT BLOCK SETUP BEFORE USE
|
